JCB36M-1

Control Box JCB36M with 2ports

€49,00
€49,00
Sale Sold out
Tax included. Shipping calculated at checkout.
Column type: For 3-section column 560/650

Description

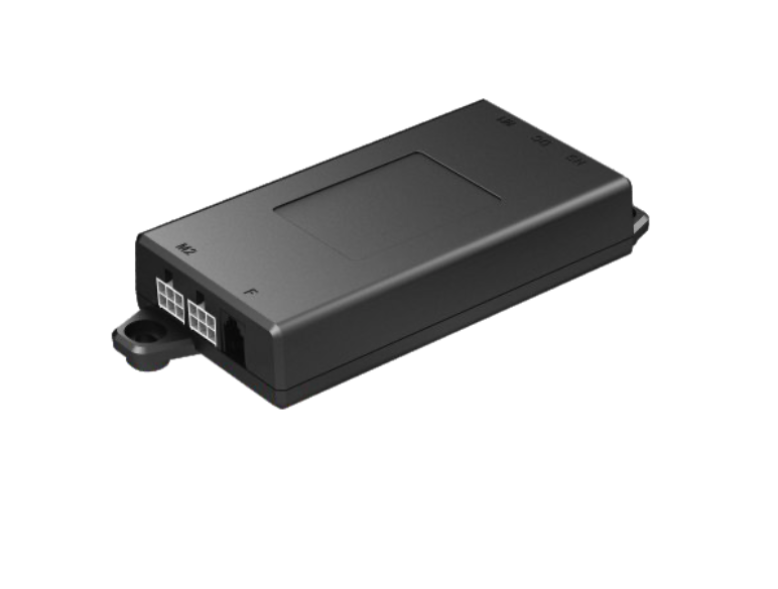

The Jiecang JCB36M is a compact, lightweight control box that can be powered either with an external power adaptor or a Li-ion battery for cordless use (both sold separately).

Key Features

• Compatible with 2-column systems
• Compact and lightweight
• Powered by Li-ion battery or external adaptor
• Smooth start/stop with resistance-retreat (anti-collision)
• Mounts on frame brackets or directly to the tabletop with screws
• Low standby consumption (0.1 W)

Technical Specs

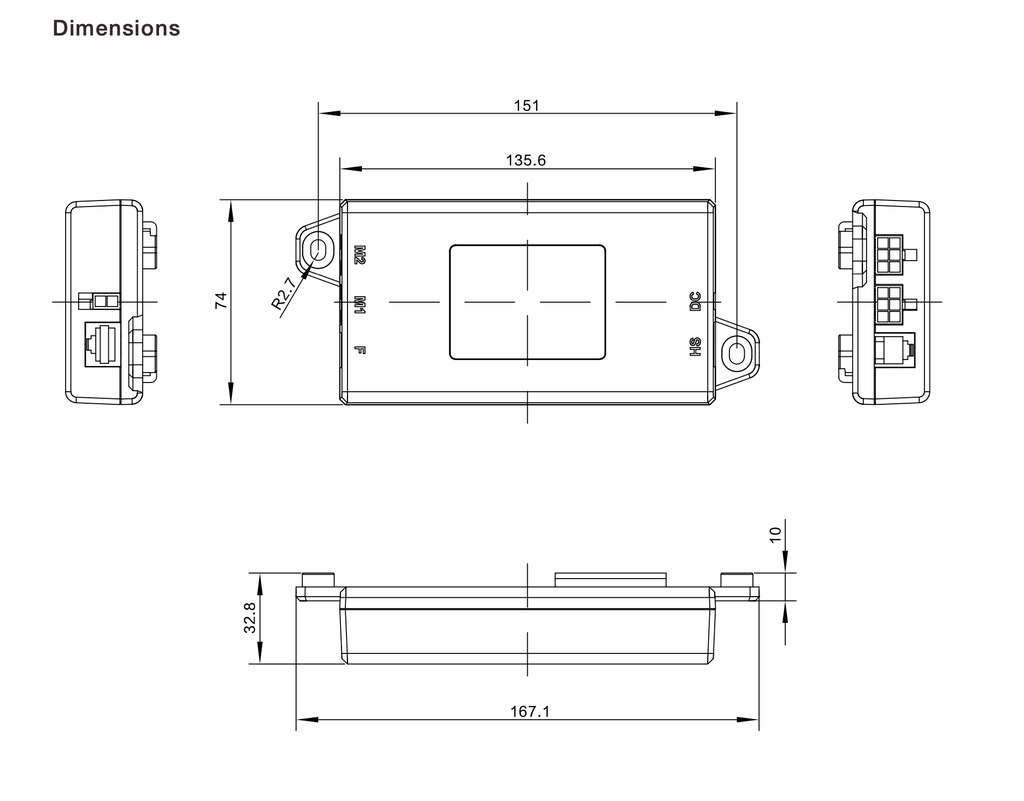

• Size: 167 × 74 × 33 mm
• Weight: 0.2 kg
• Input voltage:  DC 22-32V
• Output: 24 V / 6 A (144W)
• Duty cycle: 10% (2 min on / 18 min off)
• Indoor use only

Secure checkout with
  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
View Product Details
Check if your desk is compatible with this Control Box

Desk compatibility in 3 steps

Step 1

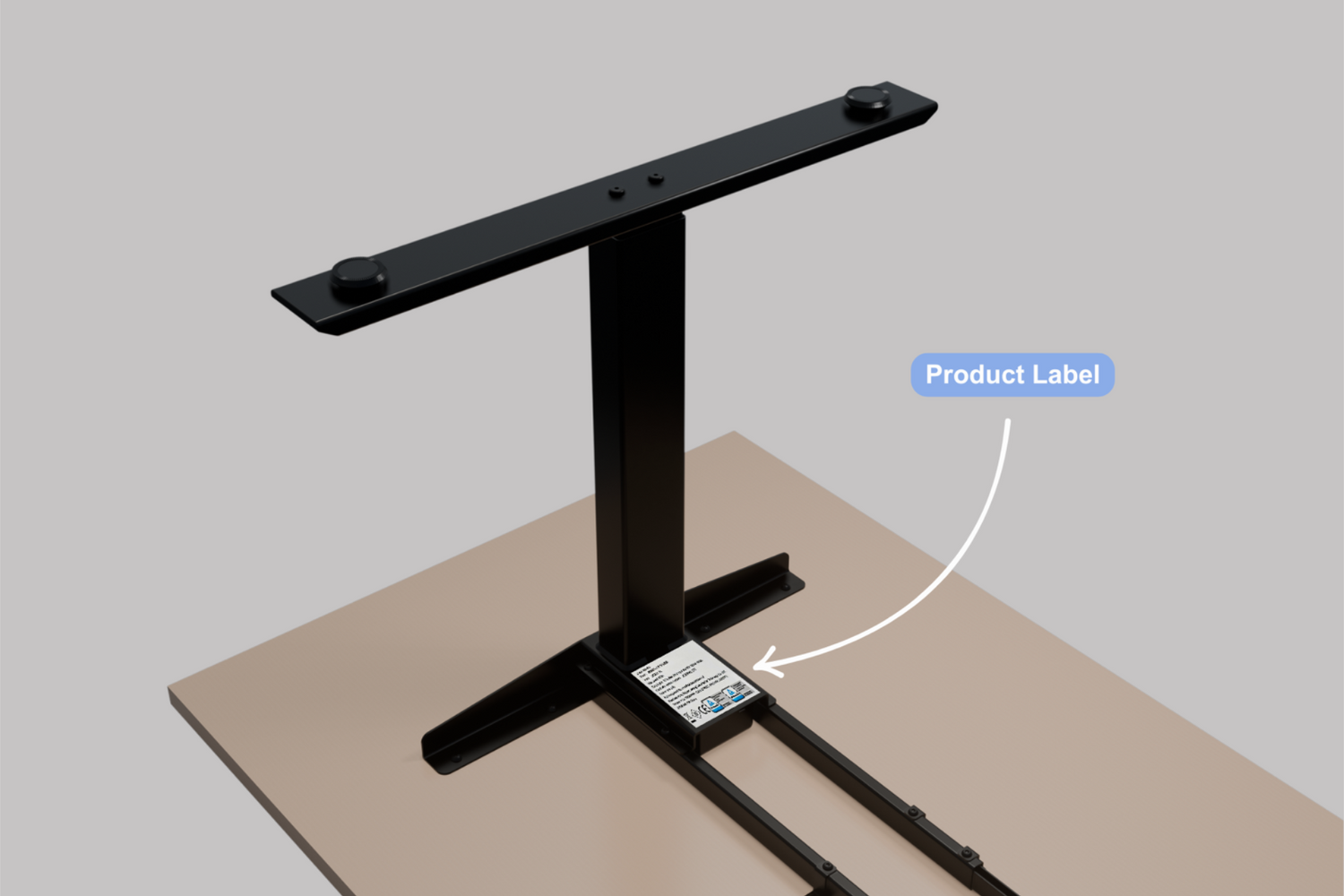

Find the product label

Check the underside of your desk frame and find the product label on the lifting column assembly.

You will need the information on this label to verify compatibility with this control box.

Step 2

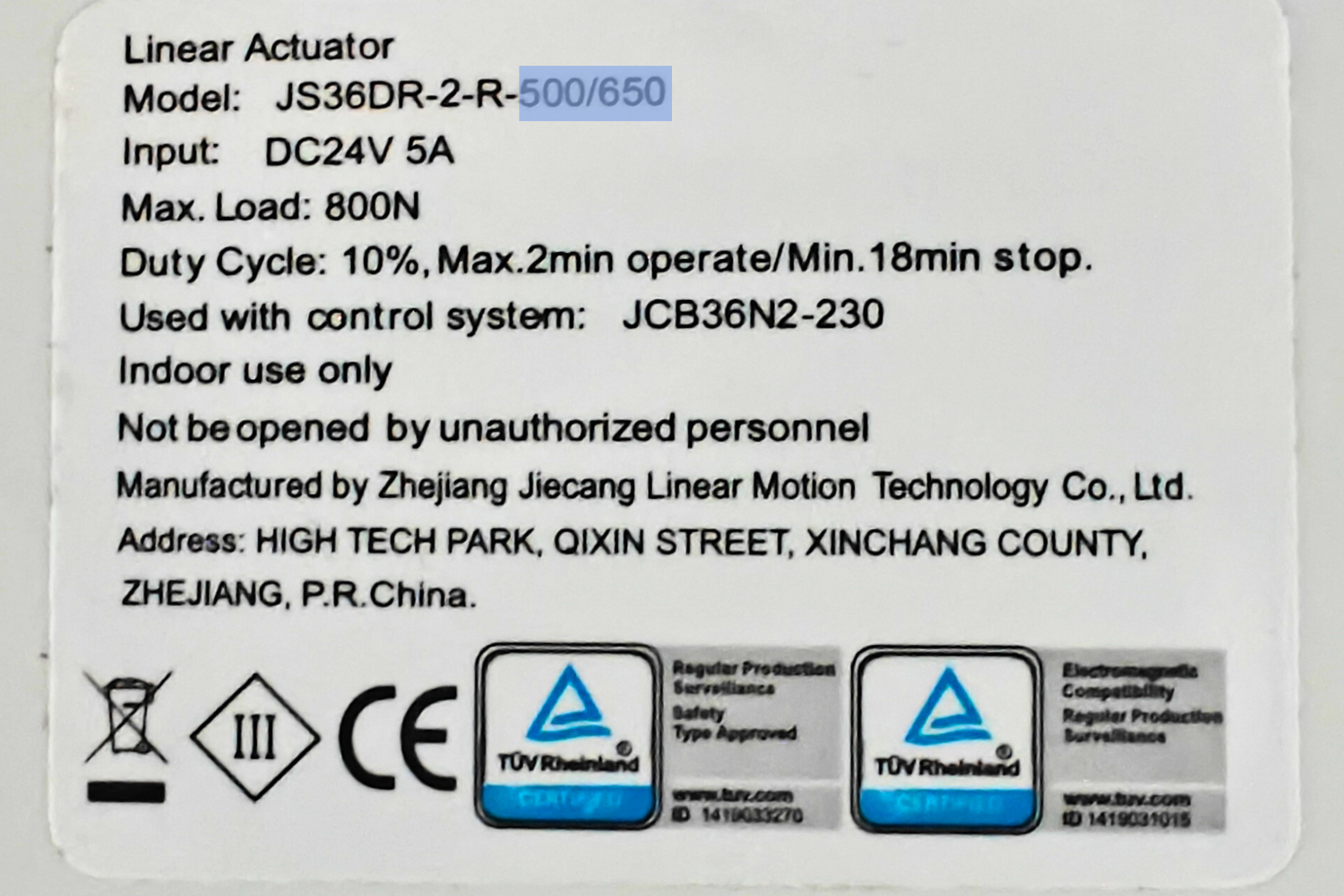

Label code

Your label should contain one of the following codes:

• JS36D X - X - X 560 / 650 - X - X
• JS36D X - X - X 500 / 650 - X - X

These numbers help identify which lifting column version your desk uses.

If your column shows different numbers, this control box is not compatible.

Step 3

Confirm Your Column Type

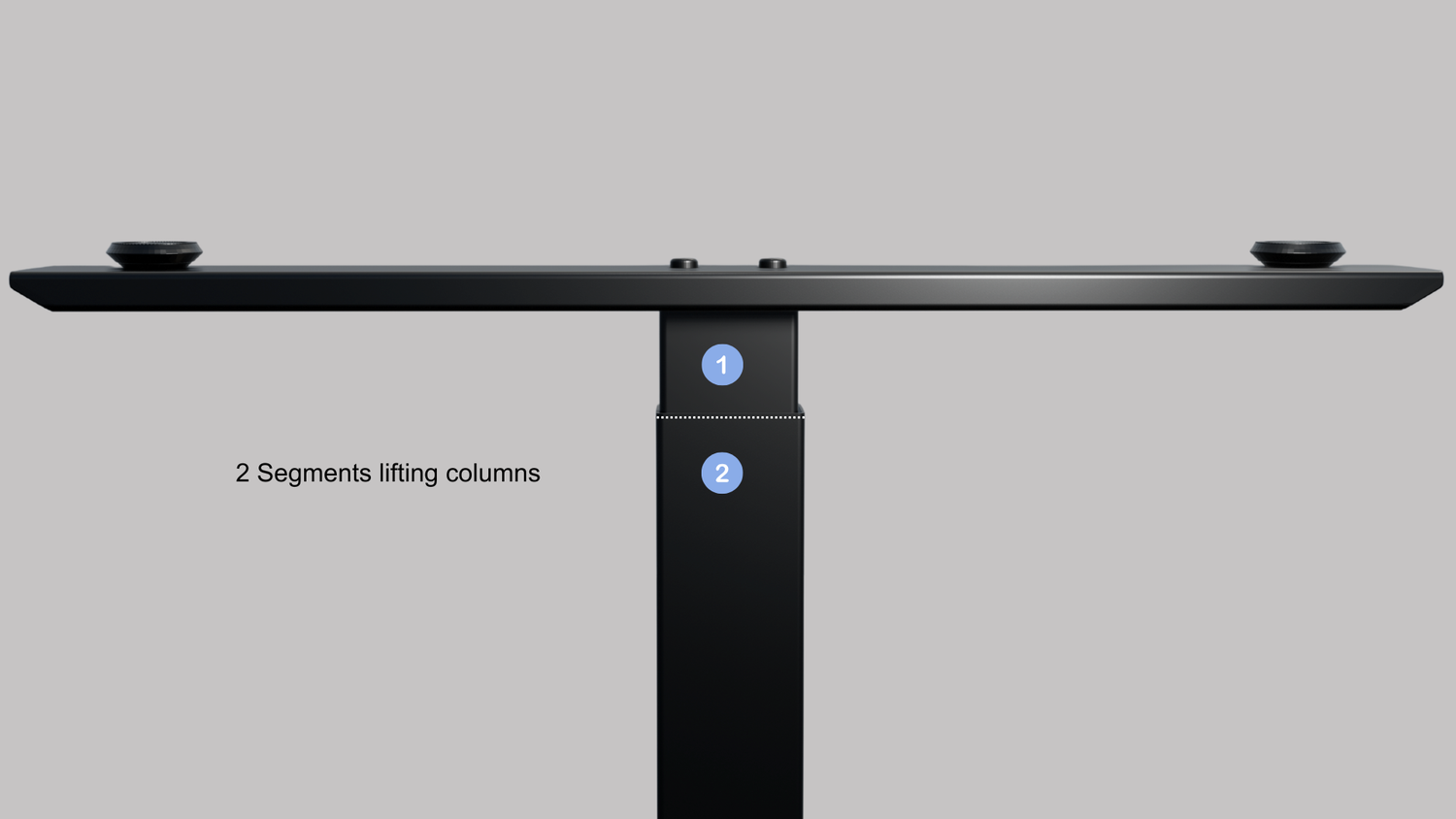

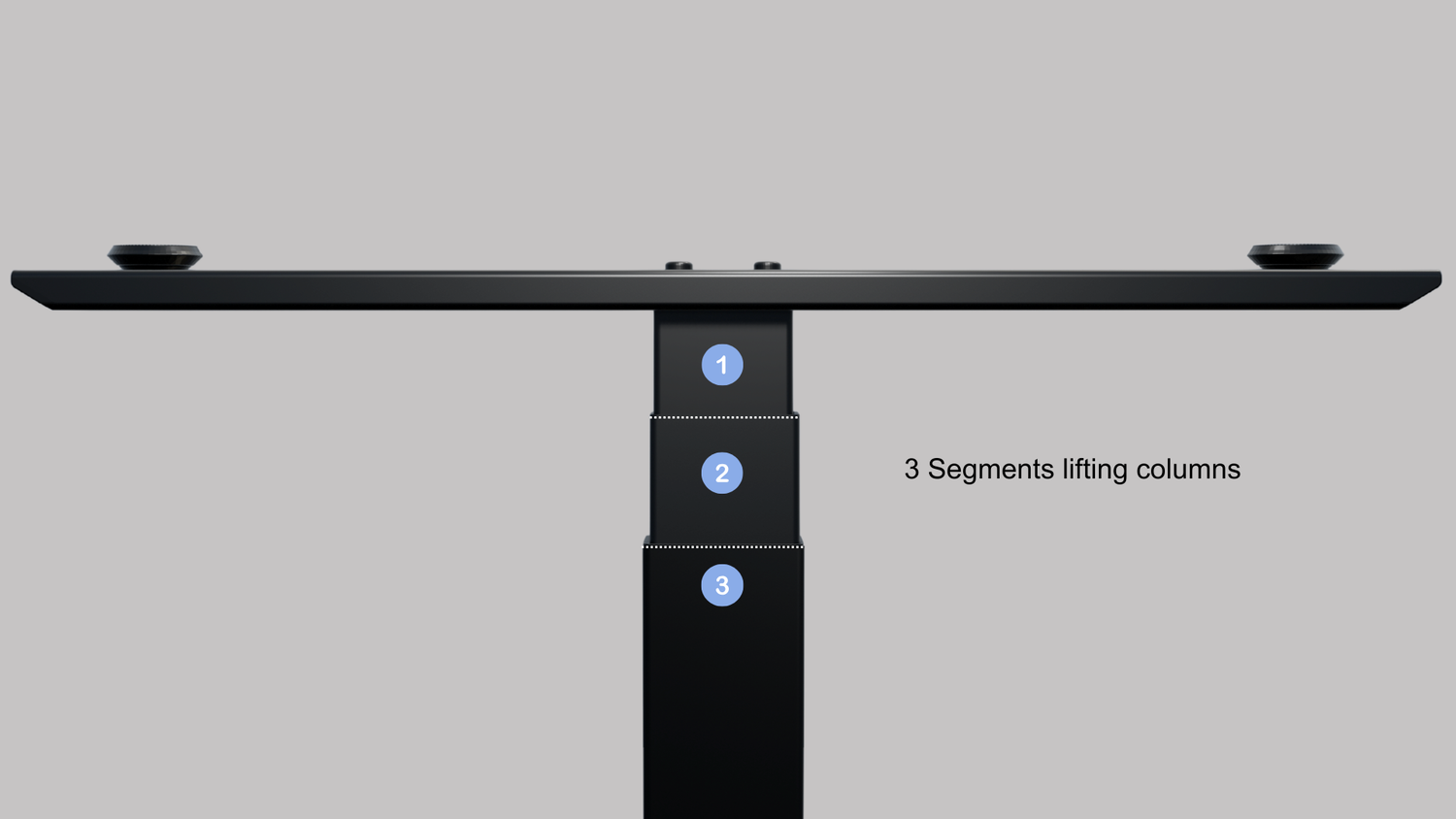

This control box is compatible only with lifting columns that have 2 or 3 segments.

Look at your lifting column and count the visible sections:
